AMPLIFIER

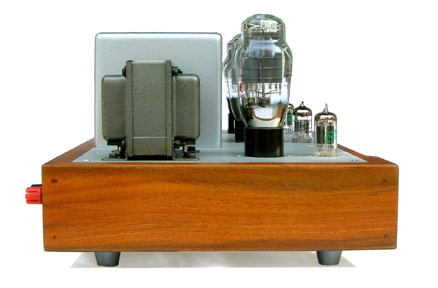

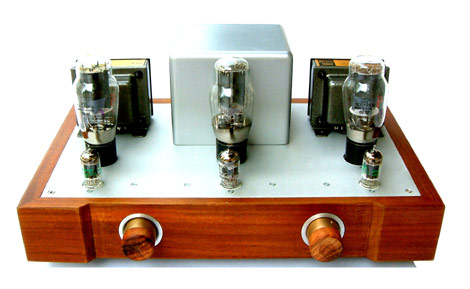

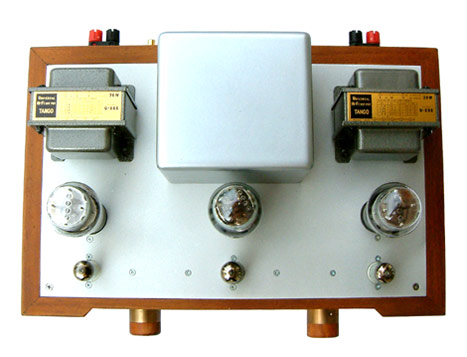

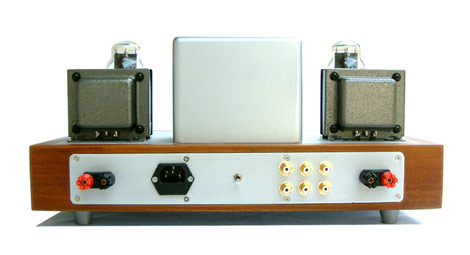

Integrated 2A3 SE Amplifier


 Developed under concept of more affordable SE amp that packs with special features, this SE integrated Amplifier is created with standard as our high price model. These include hand crafted solid hard wood chassis, special solid brass knobs with wooden trim, hard wiring via solid copper wire, 3 pair of RCA input, vacuum tube rectifier with choke and ceramic socket. Parts include Tango output transformer, Hovland Musicap capacitor, Kiwame carbon resistor, ALPS volume control and many more.
Schematic derives from simple stage of R-C Coupling from super low noise pre-amp tube 6N1P to drive high performance JAN 5687WB. The working point is set so that all the stages will work in unison and produce incredible pure/dynamic sound through 3.7 watts RMS of class A with Sovtek 2A3 tube. At this level of power, it will please most listeners who have +90dB/W/M sensitivity loudspeaker in small to medium size room (12SQ.M to 30SQ.M)

.
Specification
Product Type:
Stereo Vacuum Tube Integrated Power Amplifier with 3 RCA Input
Pre-Amp/Input Tubes:
6N1P x 1
Driver Tubes:
5687 x 2
Output Tubes:
Sovtex 2A3 x 2
Rectifying Tubes:
5U4G x 2
Coupling Capacitors:
Hovland Musicap
Output Transformer:
2.5K EI core 20 watts power handling
Output Power:
3.7 watts/CH pure class A1 design, 5 watts peak power
Frequency Response:
20-35,000Hz (-3dB)
THD:
5% at rated power
S/N ratio:
below 80dB
Size:
(W) 48 x (D) 33 x (H) 20 cm.
Weight:
Approx 15 kg.
Direct From Factory Price :
Please Contact.

Option Accessories

Cardas RCA/Binding Post
Cardas 6N Copper wiring
Gold Plate Furutech IEG Socket
High Grade Tube Sockets
BlackGate Power Supply Capacitors
