AMPLIFIER

Glow Master Series

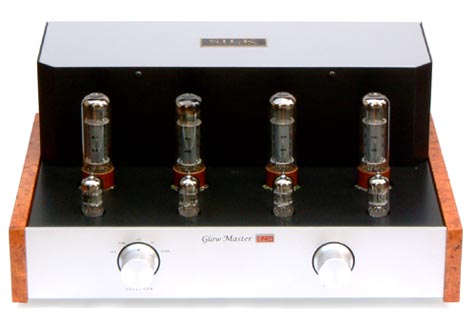

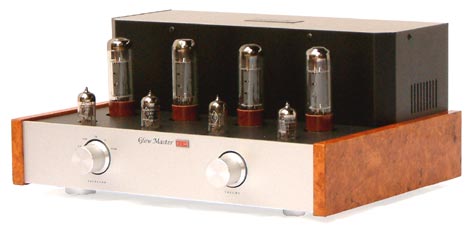

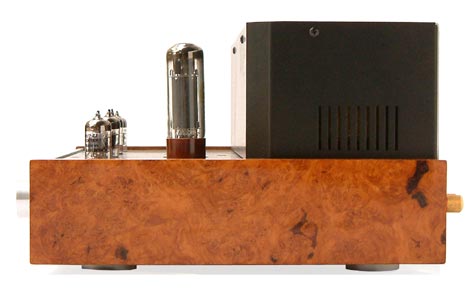

EL-34 Integrated Amplifier

  We integrate famous EL-34 into the most balance combination in Glow Master Series that ensures simplicity and retain absolute pure music playability in your system.
All part, tube characteristic, transformer winding are brewed into a very simple and effective circuit to display outstanding performance in sound. Only small amount of NFB is optimised so that it will not degrade the sound like other push-pull circuit.

Specification
Product Type:
Stereo Vacuum Tube Integrated Amplifier with 5 RCA Input
Pre-Amp/Input Tubes:
6N1P x 2
Driver Tubes:
6N1P x 2
Output Tubes:
Svetlana EL-34 x 4
Rectifier :
Fast Recovery Diode
Filter Capacitor:
1,000uF x 4 Nichicon High Ripple series
Filter Choke:
Low Loss 1.5H/400mA
Coupling Capacitors:
Hovland Musicap
Signal Resistors:
Kiwame Carbon Film type
Output Transformer:
SILK P-530(Fi) Transformer 4.6K with Ultra Linear
Output Power:
40 watts/CH class AB1 design
Frequency Response:
15-80,000Hz (-3dB) at full power
Input Sensitivity:
0.45V for full power output (at maximum volume gain)
Overall Gain:
31dB
THD + noise:
Less than 1.5% at rated power
S/N ratio:
below 88dB
Size:
(W) 43 x (D) 37 x (H) 20 cm.
Weight:
Approx 18kg.
Direct From Factory Price :
Please Contact.

Real wood panels with high gloss finishing
