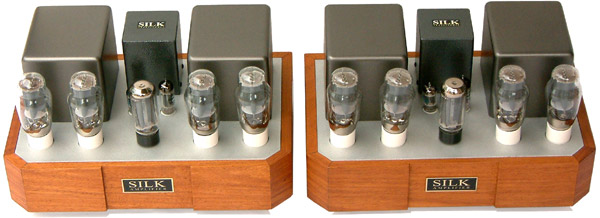

| 2A3 push-pull parallel (4 tubes/CH) generates +30Watts/RMS at class A design. At this level of power, audiences are easily being fooled to believe they were listening to +100watt/CH system. An incredible impact, speed and control in bass and lower midrage are contributed by SILK interstag transformer. These mono block amplifiers include XLR/RCA selectable input connectors and true balance input/driving circuitry. The hidden feature of adjustable constant current source (CCS) in cathode circuit of input stage is also included and bring the vocal, mid-range soundstage and high frequency to next level. |
Specification
|
Product
Type:
|
Stereo
Vacuum Tube Integrated Power Amplifier with 3 RCA Input
|
|
Pre-Amp/Input
Tubes:
|
6CG7
x 2
|
|
Driver
Tubes:
|
5687
x 2
|
|
Output
Tubes:
|
2A3
x 8
|
|
Rectifying
Tubes:
|
5U4G
x 2
|
|
Coupling
Capacitors:
|
Hovland
Musicap (from 6CG7 to 5687)
|
|
Interstage
Coupling:
|
SILK
I-505-P turn ratio 1+1:0.5+0.5
|
|
Output
Transformer:
|
SILK
special wound push-pull output transformer
|
|
Output
Power:
|
30
watts/CH pure class A push-pull design
|
|
Frequency
Response:
|
10-35,000Hz
(-3dB)
|
|
THD:
|
less
than 1.6% at rated power (No negative feedback)
|
|
S/N
ratio:
|
below
80dB
|
|
Size:
|
(W)
48 x (D) 33 x (H) 20 cm.
|
|
Weight:
|
Approx
20 kg/ each monoblock.
|
|
Direct
From Factory Price :
|
Please
Contact.
|
