AMPLIFIER

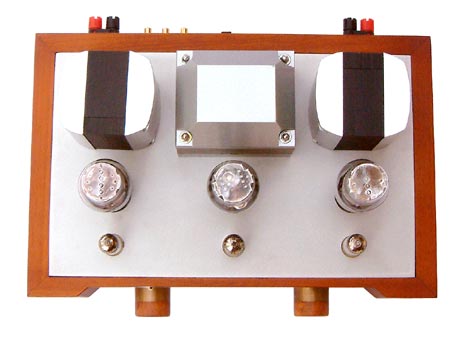

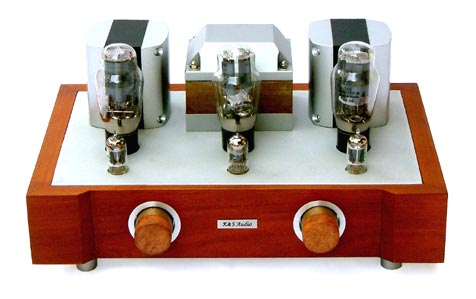

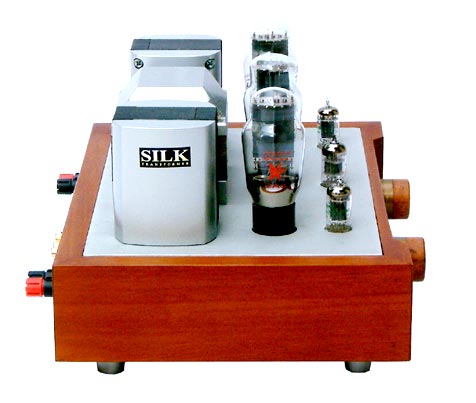

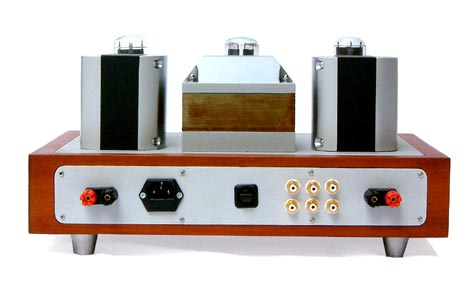

Integrated 2A3 SE Amplifier
with SILK Transformer
.
Specification
Product Type:
Stereo Vacuum Tube Integrated Power Amplifier with 3 RCA Input
Pre-Amp/Input Tubes:
6N1P x 1
Driver Tubes:
5687 x 2
Output Tubes:
Sovtex 2A3 x 2
Rectifying Tubes:
5U4G x 1
Coupling Capacitors:
Hovland Musicap
Output Transformer:
3K EI core 20 watts power handling
Output Power:
3.7 watts/CH pure class A1 design, 5 watts peak power
Frequency Response:
20-100,000Hz (-3dB)
THD:
4% at rated power
S/N ratio:
below 80dB
Size:
(W) 48 x (D) 33 x (H) 20 cm.
Weight:
Approx 15 kg.
Direct From Factory Price :
Please Contact.

Option Accessories

Cardas RCA/Binding Post
Cardas 6N Copper wiring
Gold Plate Furutech IEG Socket
High Grade Tube Sockets
BlackGate Power Supply Capacitors
